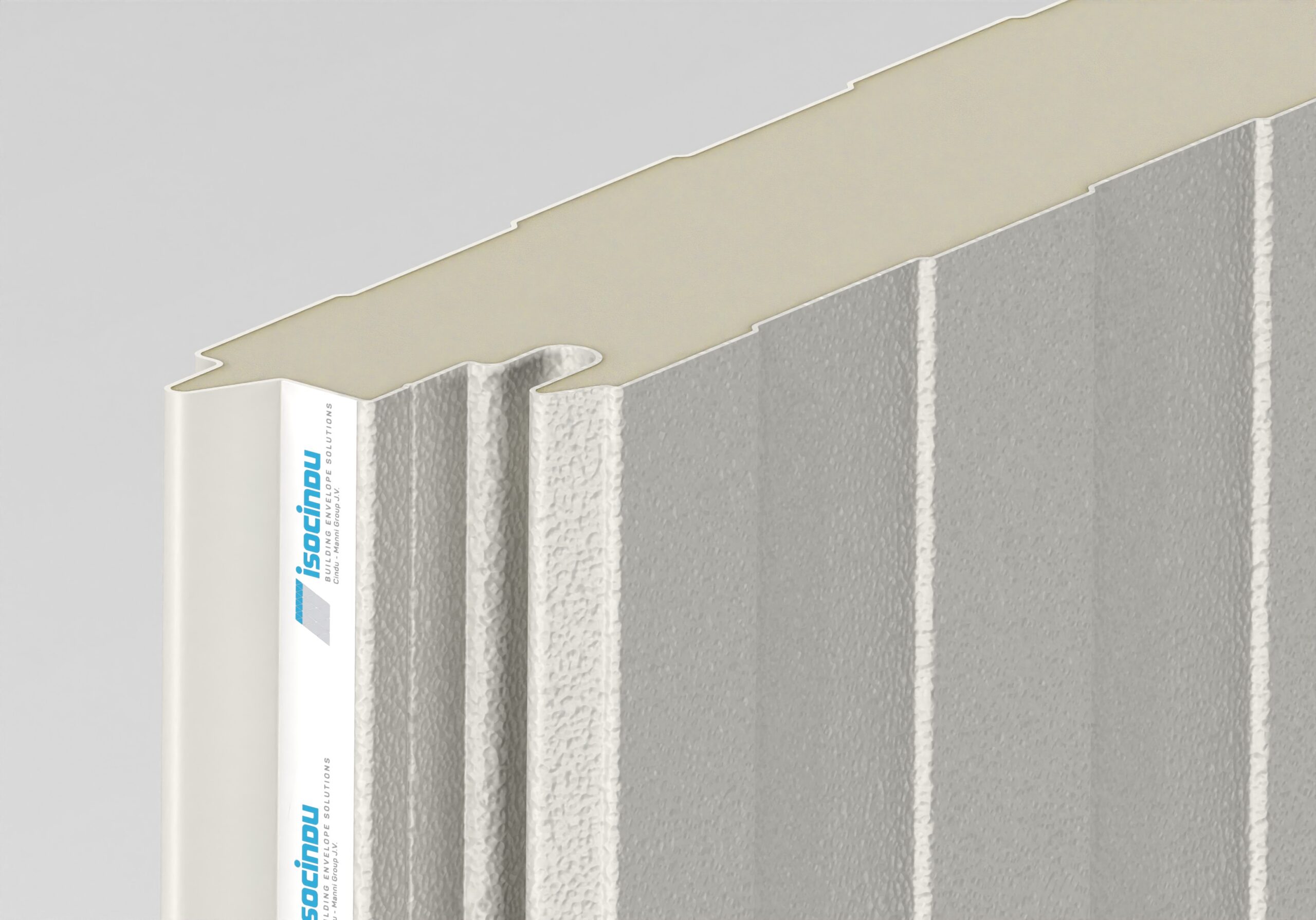

ISOFORT - Advanced Insulated Wall Panel
Exceptional Performance with internal and external mechanical seals.
Performance, flexibility, and reliability in one solution.

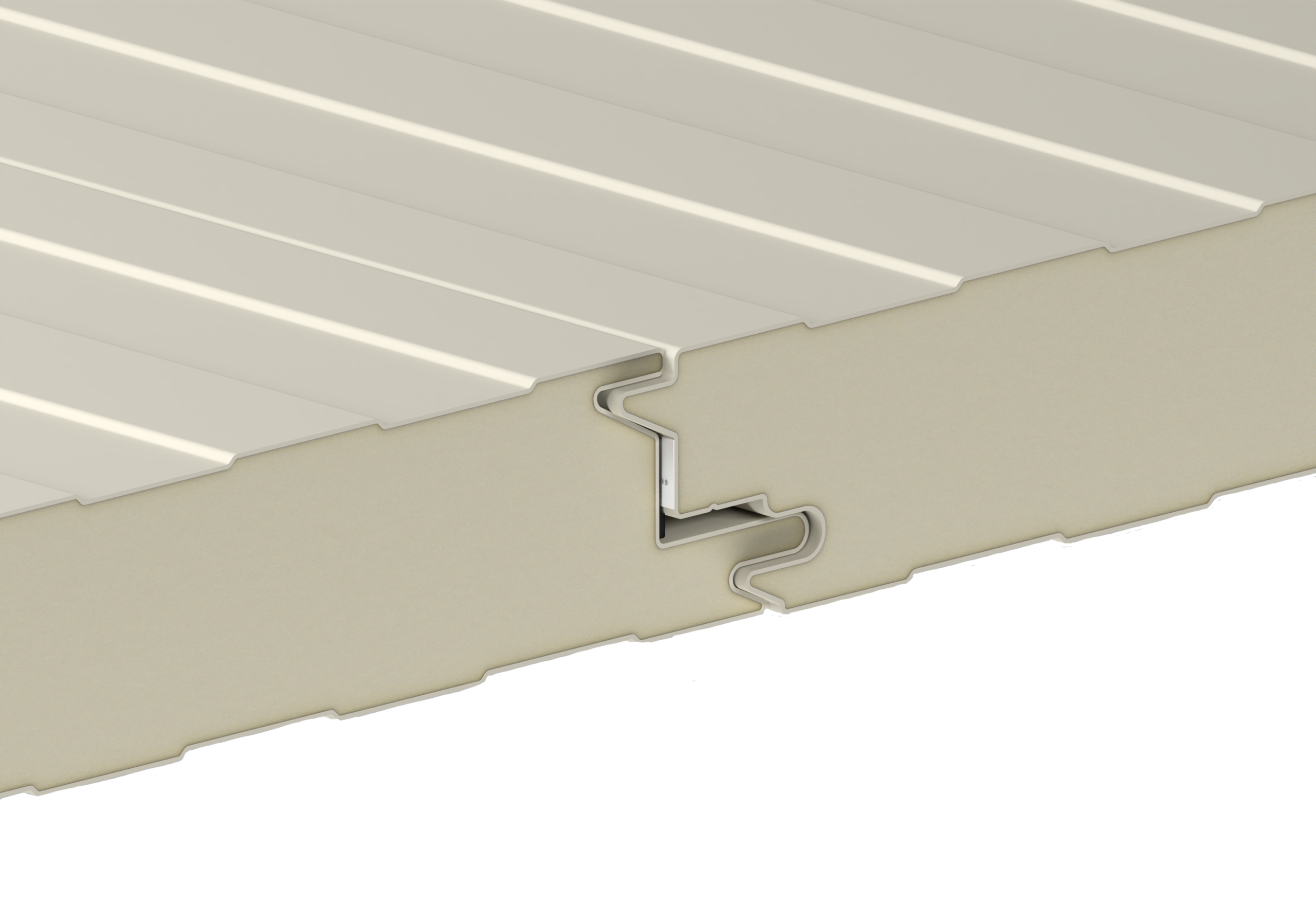

Isofort is a high-performance insulated wall panel designed for industrial, commercial, cold chain, and specialized architectural projects. With its double-joint concealed fastener system and factory-installed continuous butyl sealant, Isofort guarantees exceptional airtightness and watertightness.
Available in multiple profiles (Box, Piano, Plissé), widths (36″, 39″, 42″), and thicknesses (2″ to 8″), Isofort adapts to the most demanding projects. Its PIR, PIR R+, PUR, or Leaf foam cores deliver superior thermal performance, with R-values reaching up to 67.4 (8″). The panel is engineered to withstand harsh weather conditions while offering seamless aesthetics through hidden joints.

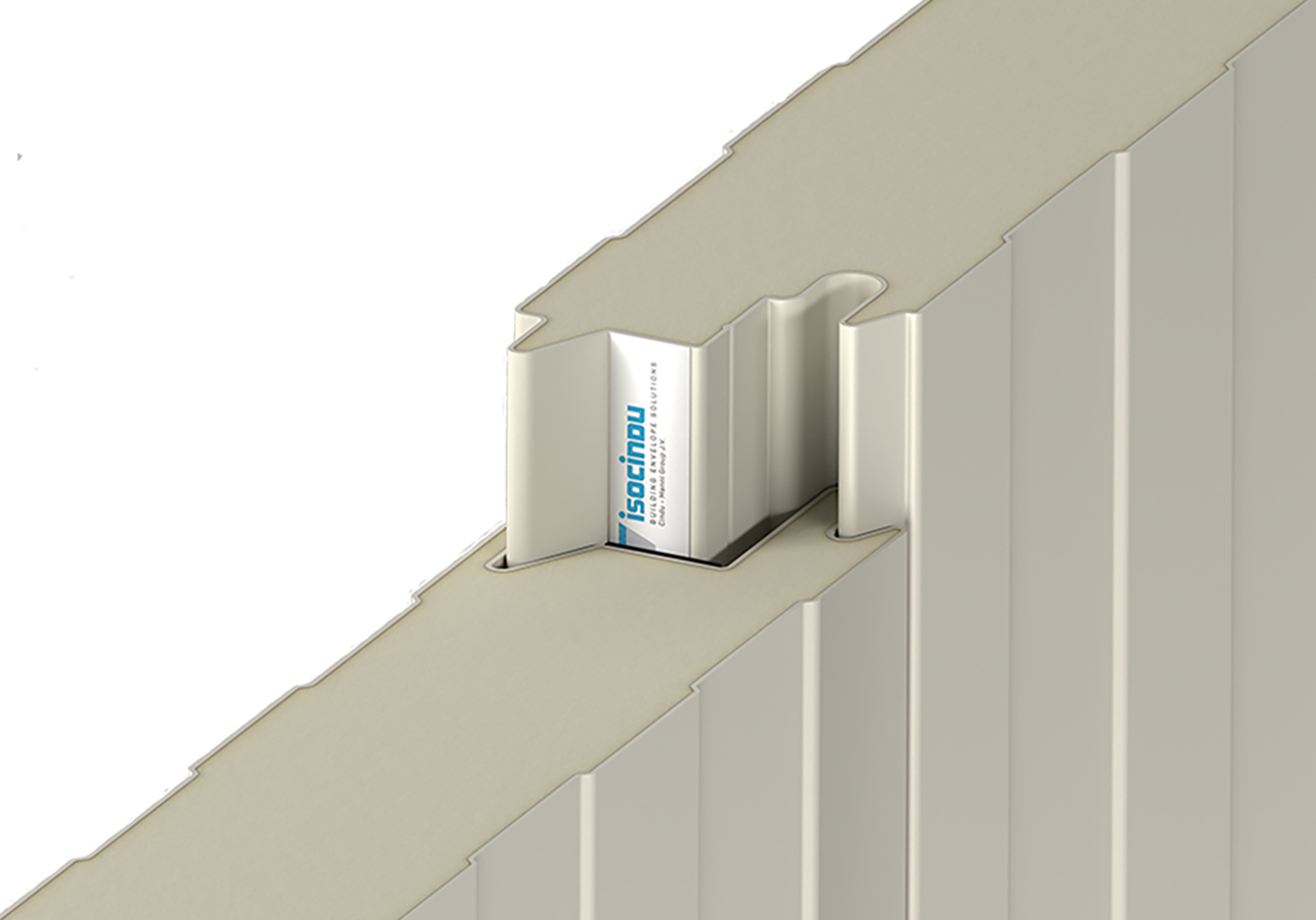

Isofort’s installation system with hidden stainless steel clips, continuous seals, and specialized trims ensures fast assembly, design flexibility, and long-term durability across vertical and horizontal orientations.
Quality
Energy Savings
Versatilidad
Durabilidad
Isofort is trusted in a wide range of projects:
Industrial – warehouses, factories, distribution centers
Cold Chain – cold rooms, freezers, and refrigerated logistics
Commercial – offices, malls, hotels, healthcare facilities
Architectural – schools, museums, government buildings, transport hubs
Specialized – airports, data centers, stadiums, green building projects
Seal
Efficiency
Strength
Versatilidad
CHARACTERISTICS
- Widths: 36", 39", 42"
- Thicknesses: 2", 2½", 3", 4", 5", 6", 8"
- Panel length: Up to 53 ft
- Steel gauges: Exterior 22, 24, 26 | Interior 22, 24, 26, 28
